🌌 Lesson 4.5: Mini-Project — Simulating Thousands of Entities

The Goal

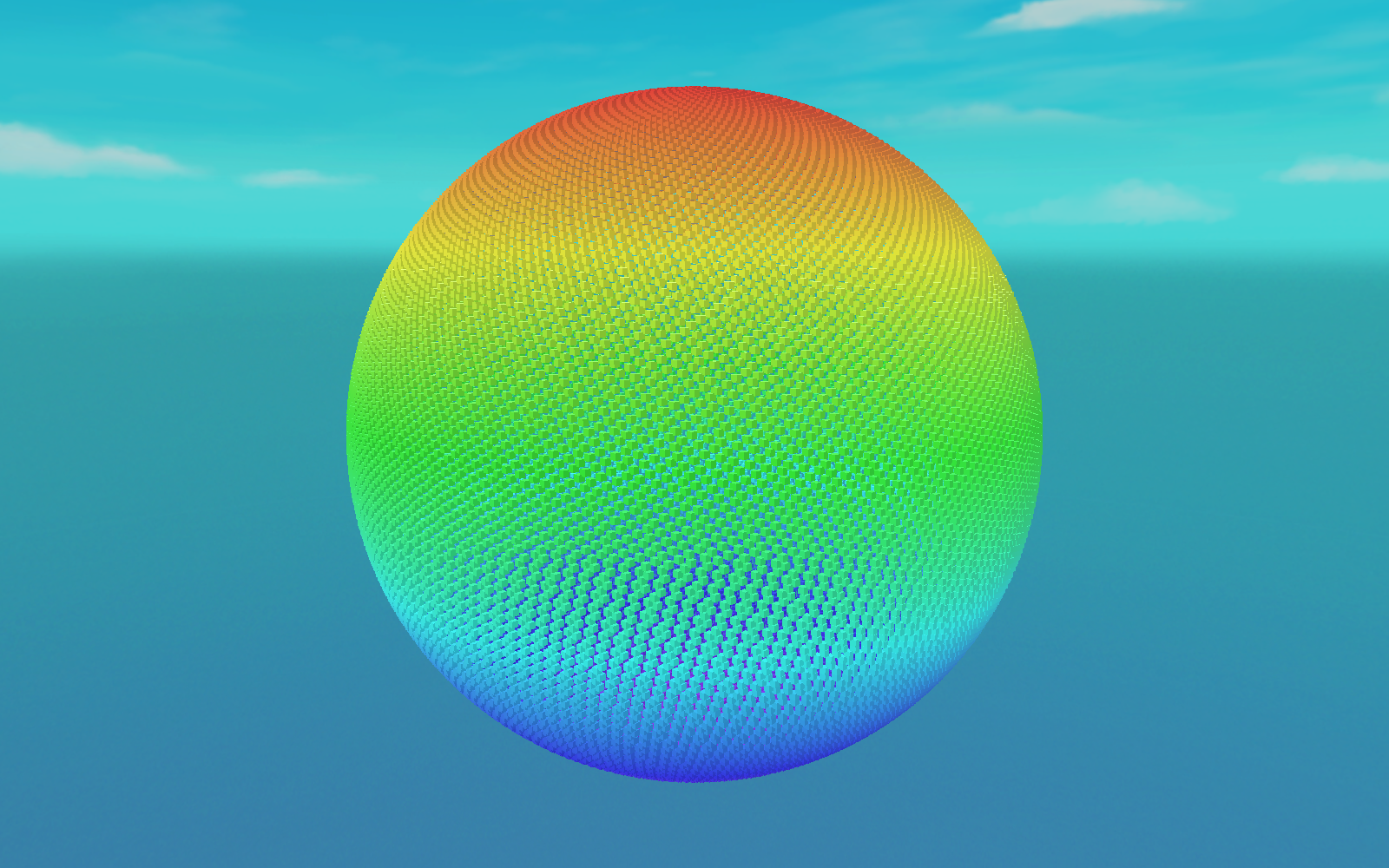

Here's the target — a real Unity 6 capture of the finished scene: 24,000 entities spawned from one baked prefab, arranged on a sphere and tinted by latitude, all rendered together and spun by a single parallel system.

The whole thing is three small scripts plus a scene. Because it's all entities and systems, it stays smooth where 24,000 GameObjects would crawl — the payoff of everything you've built.

Step 1: Components

Two data components: a Spawner singleton describing what and how many to spawn, and an OrbitSpeed the movement system reads.

using Unity.Entities;

public struct Spawner : IComponentData
{
    public Entity Prefab;   // the baked entity prefab to instantiate
    public int Count;       // how many
    public float Radius;    // sphere radius
}

public struct OrbitSpeed : IComponentData
{
    public float Value;     // radians/second the cloud rotates
}

Step 2: Prefab & Spawner (Baking)

1. Make a Cube prefab. Give its material a URP/Lit shader with Enable GPU Instancing on (so per-entity colour works).
2. Create a SubScene and add an empty GameObject Spawner to it.
3. Add this authoring component and drag the cube prefab into its prefab slot.

using Unity.Entities;
using UnityEngine;

public class SpawnerAuthoring : MonoBehaviour
{
    public GameObject prefab;
    public int count = 24000;
    public float radius = 45f;

    class Baker : Baker<SpawnerAuthoring>
    {
        public override void Bake(SpawnerAuthoring authoring)
        {
            Entity entity = GetEntity(TransformUsageFlags.None);
            AddComponent(entity, new Spawner
            {
                // bake the referenced prefab into its own entity
                Prefab = GetEntity(authoring.prefab, TransformUsageFlags.Dynamic),
                Count  = authoring.count,
                Radius = authoring.radius
            });
        }
    }
}

Baking turns the cube prefab into a renderable entity template and stores its handle on the Spawner singleton — exactly the entity-prefab pattern from Lesson 4.4.

Step 3: The Spawn System

This system runs once: it reads the Spawner, instantiates Count copies of the prefab through an EntityCommandBuffer (instantiation is a structural change), lays them out on a Fibonacci sphere, gives each an OrbitSpeed, and tints it by latitude. Then it disables itself.

using Unity.Burst;
using Unity.Collections;
using Unity.Entities;
using Unity.Mathematics;
using Unity.Rendering;      // URPMaterialPropertyBaseColor
using Unity.Transforms;

[BurstCompile]
public partial struct SpawnSystem : ISystem
{
    [BurstCompile]
    public void OnCreate(ref SystemState state) => state.RequireForUpdate<Spawner>();

    [BurstCompile]
    public void OnUpdate(ref SystemState state)
    {
        state.Enabled = false;                       // spawn once, then stop
        var spawner = SystemAPI.GetSingleton<Spawner>();

        var ecb = new EntityCommandBuffer(Allocator.Temp);
        float golden = math.PI * (1f + math.sqrt(5f));   // golden angle

        for (int i = 0; i < spawner.Count; i++)
        {
            Entity e = ecb.Instantiate(spawner.Prefab);

            // even points on a sphere (Fibonacci lattice)
            float t   = (i + 0.5f) / spawner.Count;
            float phi = math.acos(1f - 2f * t);
            float th  = golden * i;
            float sp  = math.sin(phi);
            float3 dir = new float3(sp * math.cos(th), math.cos(phi), sp * math.sin(th));

            ecb.SetComponent(e, LocalTransform.FromPositionRotationScale(
                dir * spawner.Radius, quaternion.identity, 0.7f));
            ecb.AddComponent(e, new OrbitSpeed { Value = 0.3f });

            // colour by latitude: blue (bottom) → red (top)
            float c = dir.y * 0.5f + 0.5f;
            float4 col = math.lerp(new float4(0.15f, 0.35f, 0.95f, 1f),
                                   new float4(0.95f, 0.25f, 0.15f, 1f), c);
            ecb.AddComponent(e, new URPMaterialPropertyBaseColor { Value = col });
        }

        ecb.Playback(state.EntityManager);
        ecb.Dispose();
    }
}

Note everything in the loop is Burst-friendly math — no UnityEngine.Color, no managed calls — so the whole system compiles native. The URPMaterialPropertyBaseColor component is what Entities Graphics reads to tint each instance (it needs the material's GPU instancing, which is why we enabled it in Step 2).

Step 4: The Orbit System

Now the per-frame work. An IJobEntity rotates every entity's position (and rotation) around the Y axis, so the whole sphere spins as one — and it runs in parallel across every core, Burst-compiled:

using Unity.Burst;
using Unity.Entities;
using Unity.Mathematics;
using Unity.Transforms;

[BurstCompile]
public partial struct OrbitJob : IJobEntity
{
    public float DeltaTime;

    void Execute(ref LocalTransform transform, in OrbitSpeed orbit)
    {
        quaternion spin = quaternion.RotateY(orbit.Value * DeltaTime);
        transform.Position = math.mul(spin, transform.Position);
        transform.Rotation = math.mul(spin, transform.Rotation);
    }
}

[BurstCompile]
public partial struct OrbitSystem : ISystem
{
    [BurstCompile]
    public void OnCreate(ref SystemState state) => state.RequireForUpdate<OrbitSpeed>();

    [BurstCompile]
    public void OnUpdate(ref SystemState state)
    {
        var job = new OrbitJob { DeltaTime = SystemAPI.Time.DeltaTime };
        state.Dependency = job.ScheduleParallel(state.Dependency);   // no Complete() — ECS handles it
    }
}

That's the entire runtime: 24,000 transforms updated every frame across all your cores, then handed to Entities Graphics to draw. There is no MonoBehaviour.Update anywhere in sight.

Run It

1. Close the SubScene so its entities bake.
2. Press Play. You'll see a slowly rotating sphere of thousands of coloured cubes — Figure 1, in motion.
3. Open Window ▸ Entities ▸ Hierarchy and confirm the entity count (~24,001 including the spawner). Open the Systems window to see SpawnSystem (now disabled) and OrbitSystem ticking.
4. Open the Profiler: the OrbitJob spreads across the worker lanes each frame while the main thread stays thin — the whole point of ECS.

Tuning & Extending

• Scale it up. Raise count to 100,000. It should still run smoothly — that headroom is exactly why ECS exists.
• Give each entity its own motion. Add a per-entity Velocity and drift them outward, or a noise-based wander, instead of a rigid orbit.
• Destroy on a condition. Add a Lifetime component that ticks down and have a system DestroyEntity via an ECB when it hits zero — practise structural changes at scale.
• Spawn from input. Move spawning into a system that reads a key press and instantiates a burst each time, instead of once at load.

Quick Quiz

Summary

🚀 What's Next?

That completes the Performance & DOTS pillar. Next we turn to how those pixels actually get drawn. Module 5: Advanced Rendering takes you below Shader Graph — into HLSL, custom render passes, and compute shaders — starting with Lesson 5.1: The URP Frame & the Frame Debugger.
